BB – Mechanical retention
BB
Single 90º
BB – Mechanical retention
BBD
Double same plane
BB – Mechanical retention

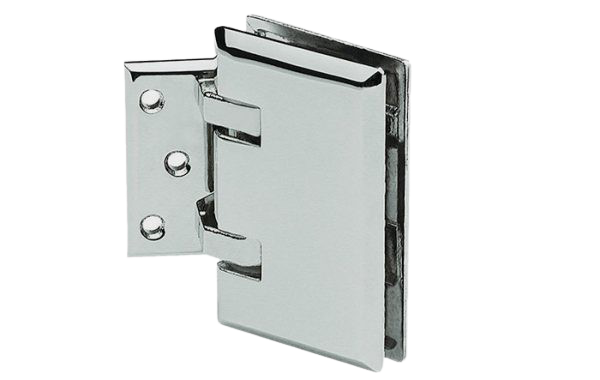

BB135º
Double 135º same plane
BB – Mechanical retention
BBD2
Double same plane with central glass
BB – Mechanical retention
BBD 135º
Double 135º same plane
BB – Mechanical retention
BBD90
Double 90°
BB – Mechanical retention
BBD90º-1
Double 90°-1
BB – Mechanical retention
BBE
Single corner 90°
BB – Mechanical retention
BBP
Double foldable same plane (without retention)
BB – Mechanical retention
BB
Single 90º

GENERAL FEATURES

  • Hinge with mechanical retention
  • Hinges manufactured by stamping in brass alloy
  • Pivot pins made of stainless steel AISI 303
  • High-quality pivot bushings with built-in maintenance-free lubricants
  • Screws made of stainless steel A2
  • Retention springs in stainless steel AISI 302
  • Glass compression gaskets made of PE
  • Retention at 0º and ±90º
  • Certified according to UNE-EN 1935:2002/AC:2004, Grade 7 / 200,000 cycles
  • Certified according to UNE-EN 1670:2007 and UNE-EN 1670:2007/AC:2008, Grade 5, maximum corrosion resistance
  • Finishes: Polished chrome – Satin nickel – Black lacquer



Recommended door dimensions

  • Glass thickness: 8 to 10 mm
  • Door size: 1000 x 2500 mm
  • Load: 35 kg per unit



OPTIONS ON REQUEST

  • Electrolytic finishes
  • RAL colours
  • Special wall bases

Technical information

Glass machining
