Products / FITTINGS / MILLENNIUM

MILLENNIUM – N Series Notched Compatible Hardware
301M
Non-adjustable upper hinge
MILLENNIUM – N Series Notched Compatible Hardware

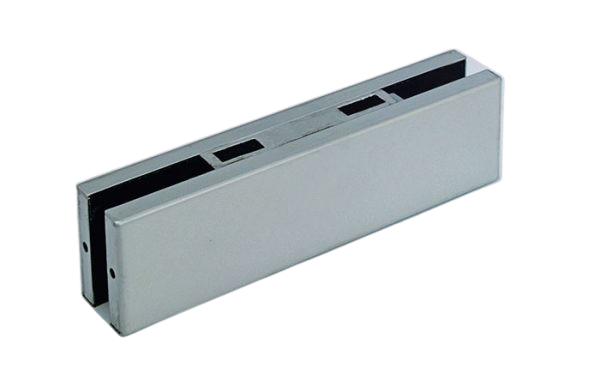

302M
Non-adjustable double strip lower hinge
MILLENNIUM – N Series Notched Compatible Hardware

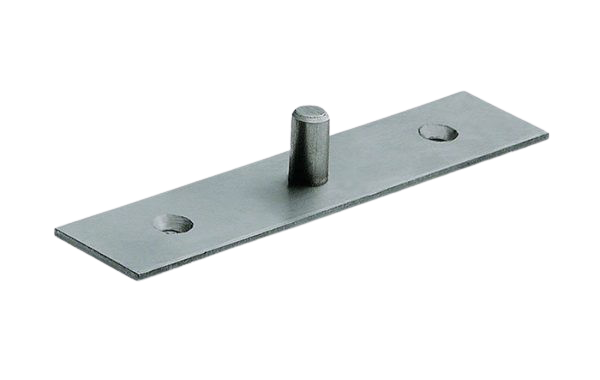

303M
Top pivot point for 301M
MILLENNIUM – N Series Notched Compatible Hardware

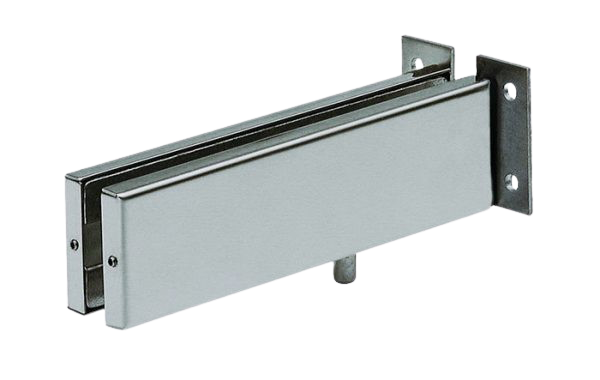

304M
Post pivot point
MILLENNIUM – N Series Notched Compatible Hardware

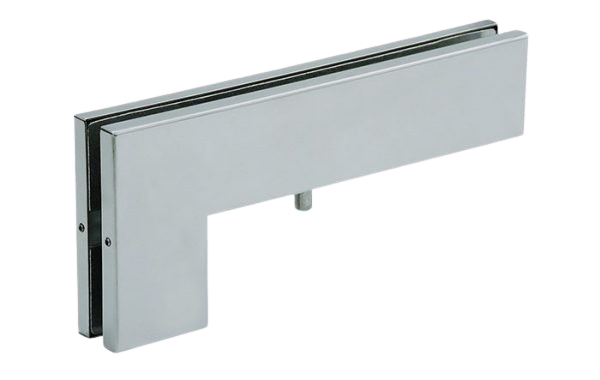

305M
Post pivot point
MILLENNIUM – N Series Notched Compatible Hardware

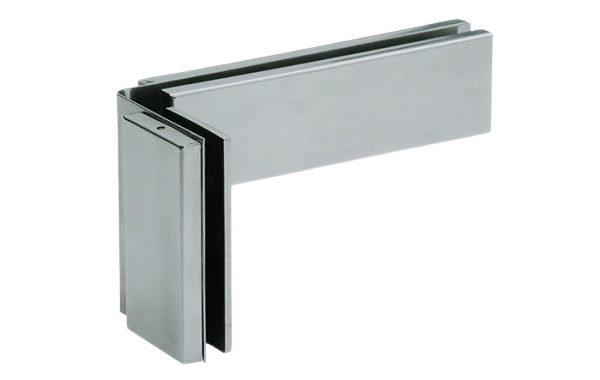

306M
Lateral post pivot point 90º angle
MILLENNIUM – N Series Notched Compatible Hardware

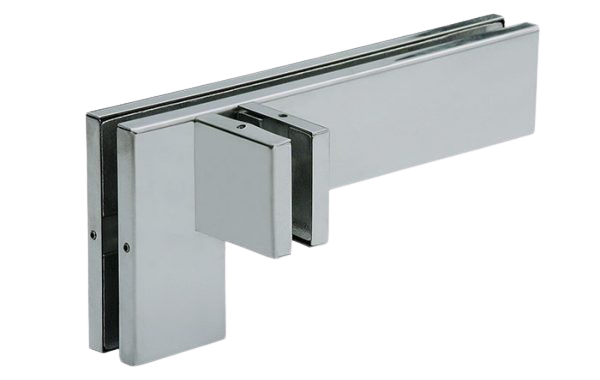

307M
Lateral post pivot point with reinforcement
MILLENNIUM – N Series Notched Compatible Hardware

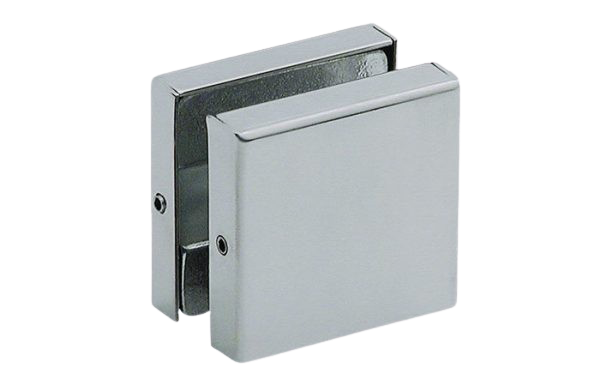

308M
Single glass union
MILLENNIUM – N Series Notched Compatible Hardware

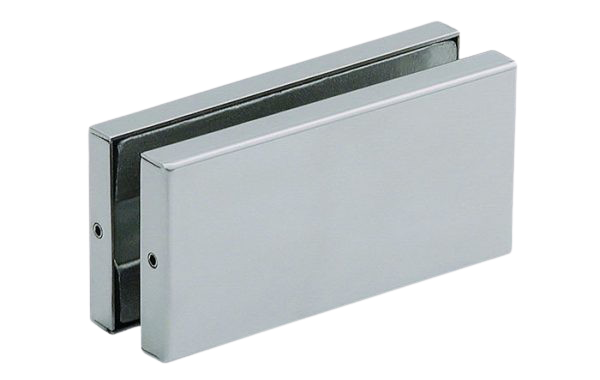

309M
Double glass union
MILLENNIUM – N Series Notched Compatible Hardware

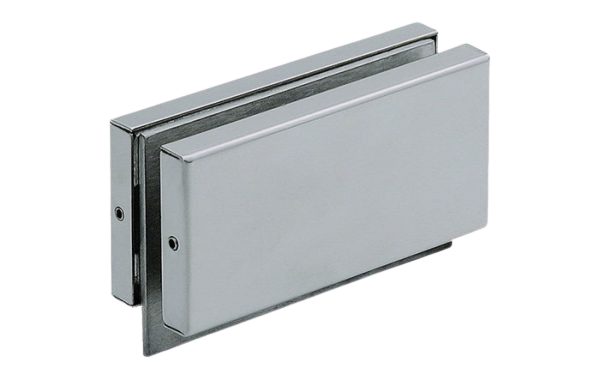

310M
Double glass union, stop
MILLENNIUM – N Series Notched Compatible Hardware

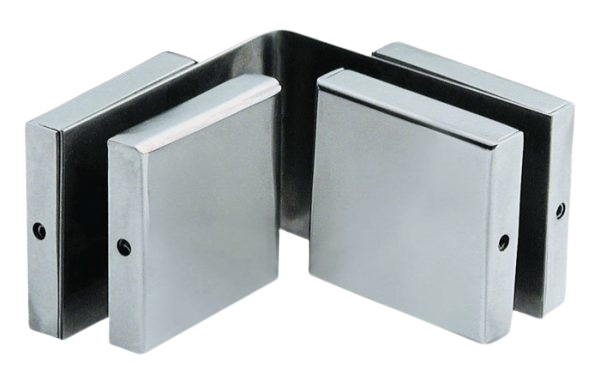

311M
Double glass union 90º angle
MILLENNIUM – N Series Notched Compatible Hardware

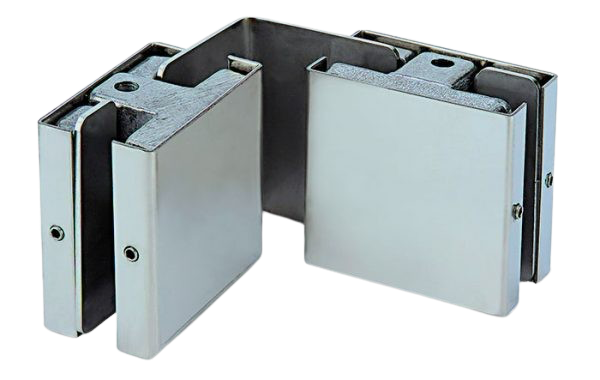

311MS
Double glass union 90º angle floor/ceiling
MILLENNIUM – N Series Notched Compatible Hardware

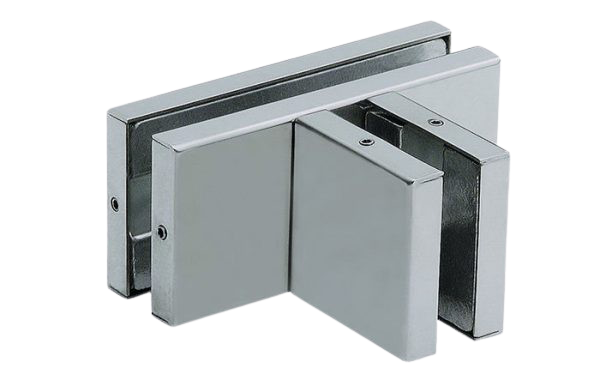

312M
Double glass union with reinforcement
MILLENNIUM – N Series Notched Compatible Hardware

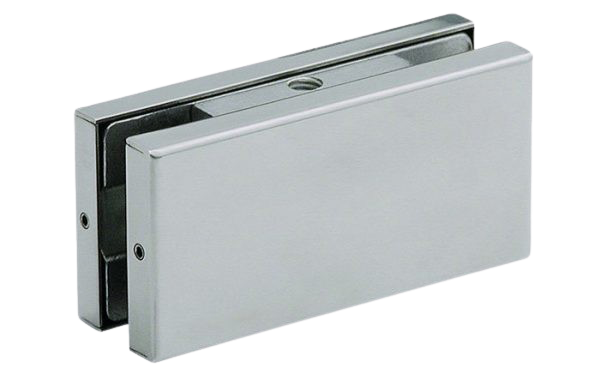

313M
Sliding door union
MILLENNIUM – N Series Notched Compatible Hardware

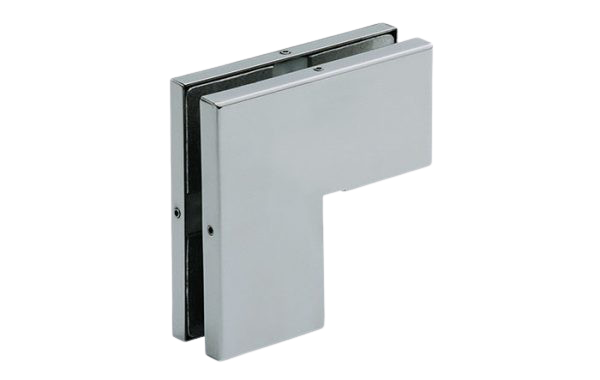

314M
Triple glass union
MILLENNIUM – N Series Notched Compatible Hardware

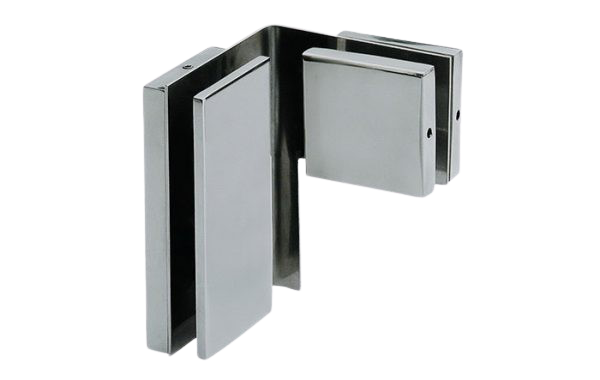

315M
Triple glass union 90º angle
MILLENNIUM – N Series Notched Compatible Hardware

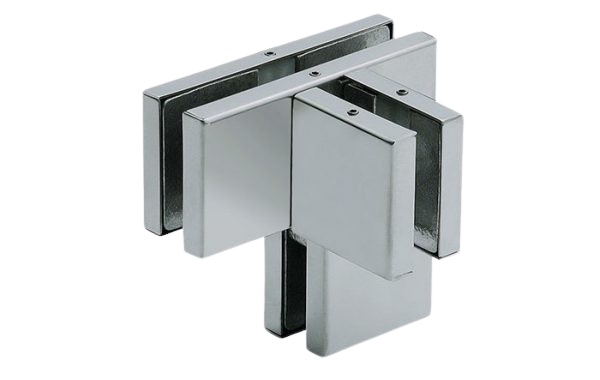

316M
Triple glass union with reinforcement
MILLENNIUM – N Series Notched Compatible Hardware

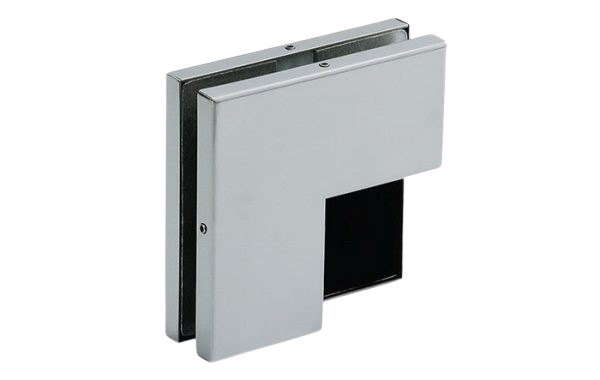

317M
Triple glass union, stop
MILLENNIUM – N Series Notched Compatible Hardware

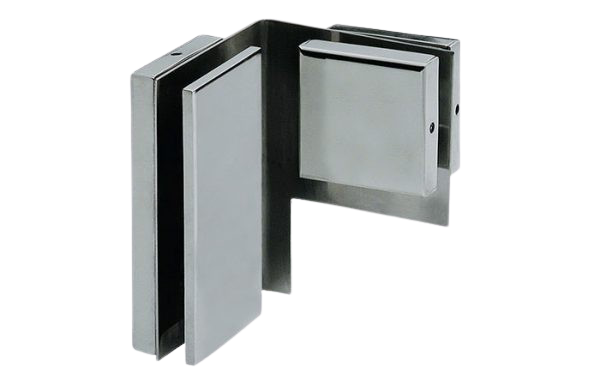

318M
Triple glass union stop 90º angle
MILLENNIUM – N Series Notched Compatible Hardware

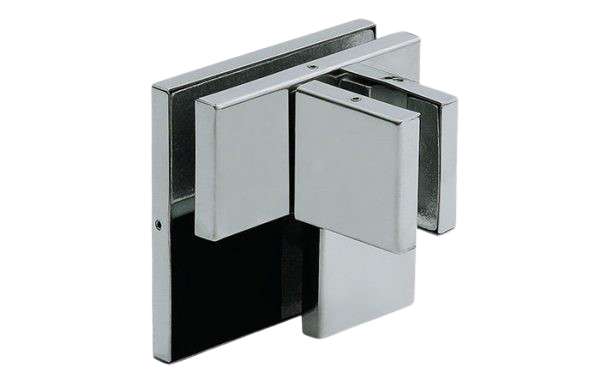

319M
Triple glass union stop with reinforcement
MILLENNIUM – N Series Notched Compatible Hardware

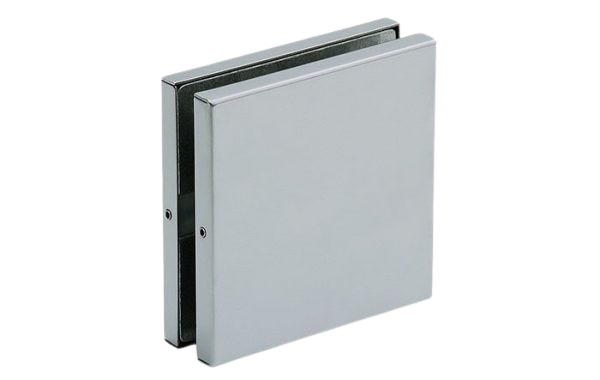

320M
Quadruple glass union
MILLENNIUM – N Series Notched Compatible Hardware

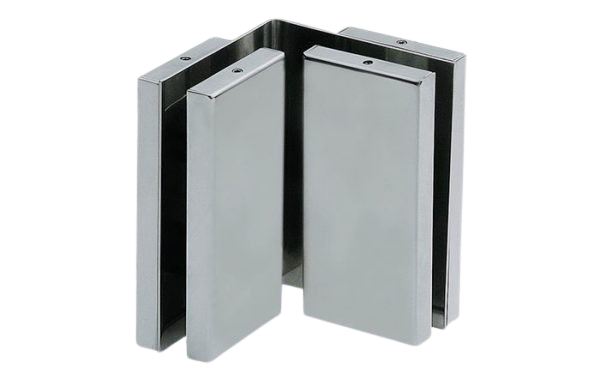

321M
Quadruple glass union 90º angle
MILLENNIUM – N Series Notched Compatible Hardware

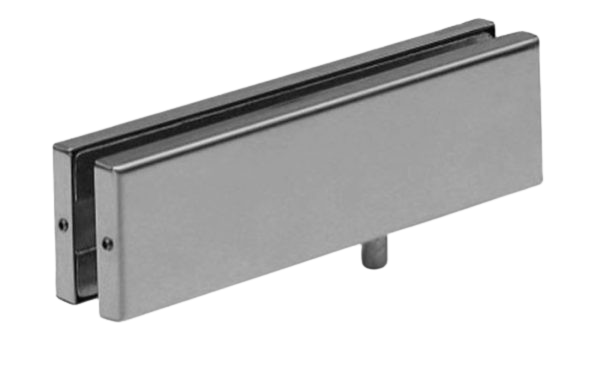

322M
Sliding post pivot point
MILLENNIUM – N Series Notched Compatible Hardware

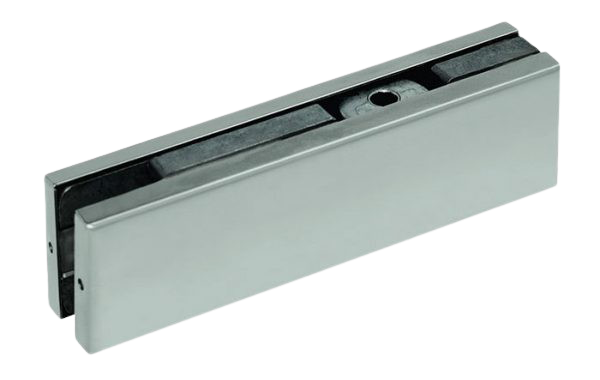

323M
Adjustable upper hinge
MILLENNIUM – N Series Notched Compatible Hardware

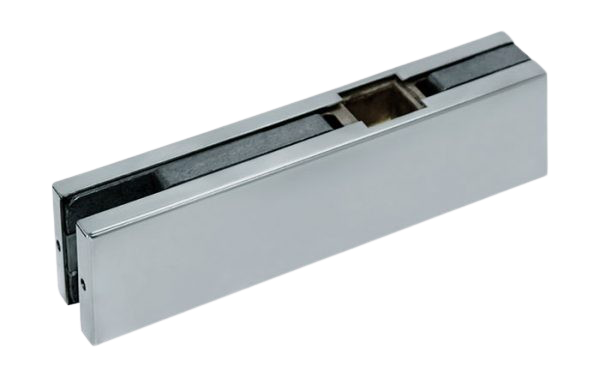

324M
Adjustable lower hinge square 16/19
MILLENNIUM – N Series Notched Compatible Hardware
325M
Adjustable lower strip hinge
MILLENNIUM – N Series Notched Compatible Hardware

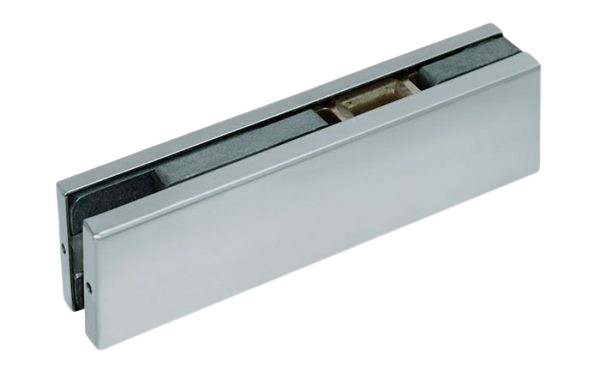

326M
Adjustable lower European hinge
MILLENNIUM – N Series Notched Compatible Hardware

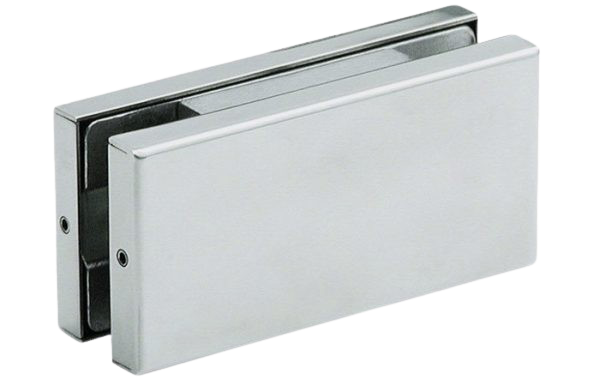

327M
Double glass union, vertical
MILLENNIUM – N Series Notched Compatible Hardware

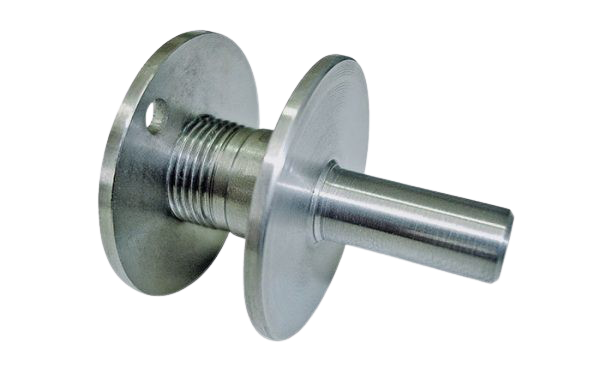

328M
Top pivot point for 301M
MILLENNIUM – N Series Notched Compatible Hardware

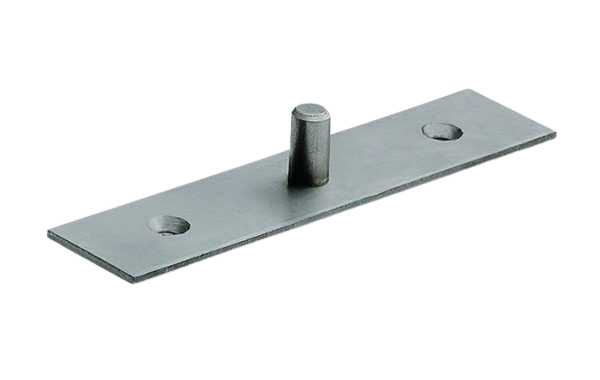

329M
Top pivot point for 323M
MILLENNIUM – N Series Notched Compatible Hardware

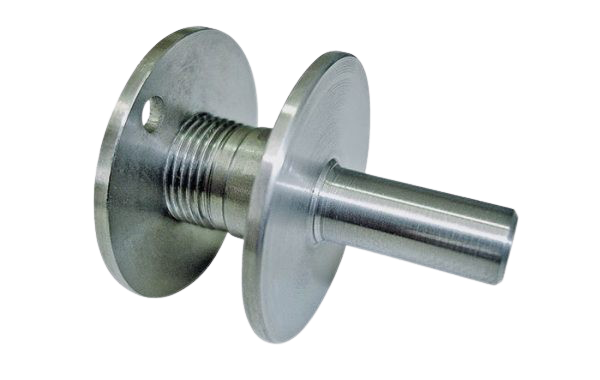

330M
Top pivot point for 323M
MILLENNIUM – N Series Notched Compatible Hardware

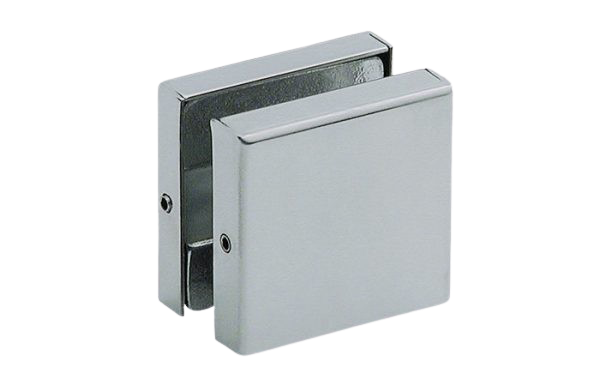

331M
Single glass union without interior anchorage
MILLENNIUM – N Series Notched Compatible Hardware

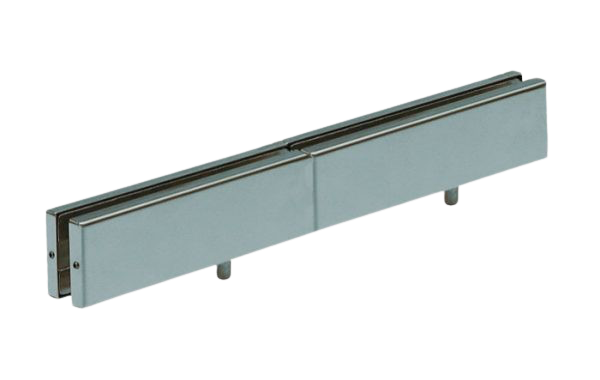

332M
Double post pivot point in door battery
MILLENNIUM – N Series Notched Compatible Hardware

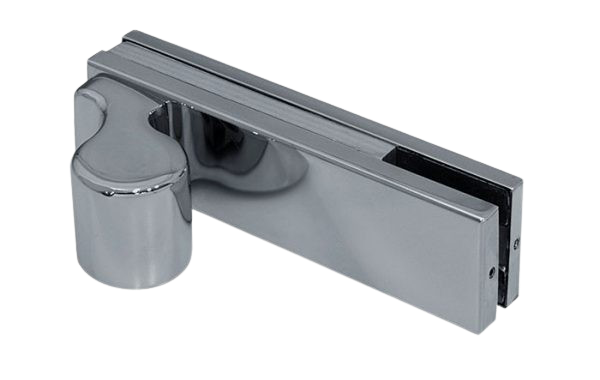

333M
Lower hinge square 16/19 displaced pivot
MILLENNIUM – N Series Notched Compatible Hardware

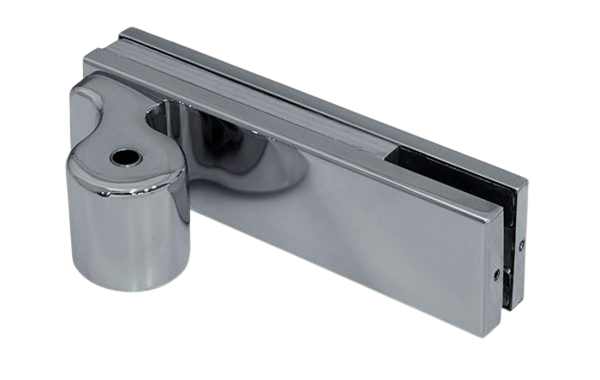

334M
Upper hinge displaced pivot
MILLENNIUM – N Series Notched Compatible Hardware
335M
Displaced post pivot point
MILLENNIUM – N Series Notched Compatible Hardware

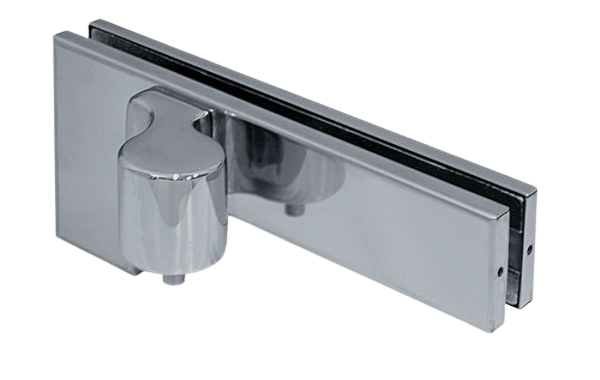

336M
Displaced lateral post pivot point
MILLENNIUM – N Series Notched Compatible Hardware

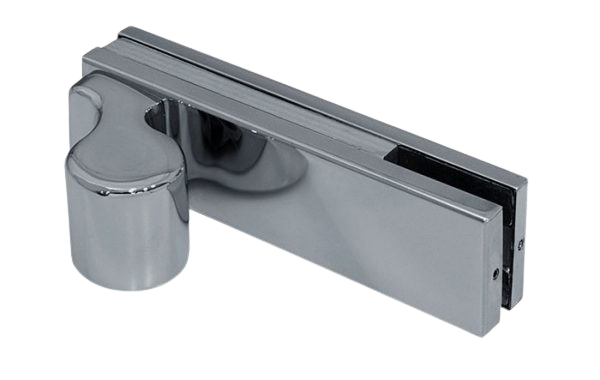

337M
Lower hinge square 16/19 displaced sliding pivot
MILLENNIUM – N Series Notched Compatible Hardware
338M
Upper hinge displaced sliding pivot
MILLENNIUM – N Series Notched Compatible Hardware

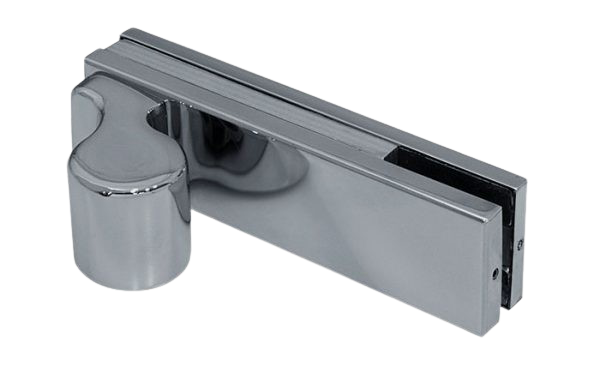

339M
Displaced sliding post pivot point
MILLENNIUM – N Series Notched Compatible Hardware

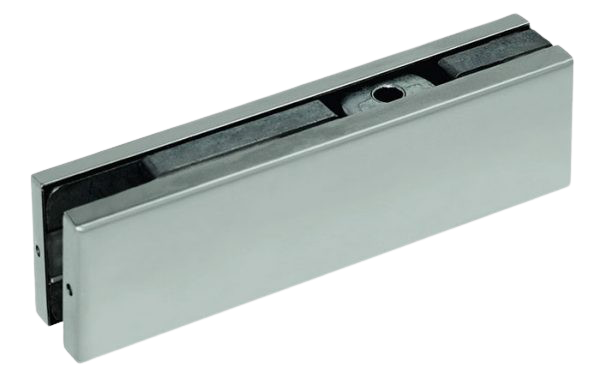

340M
Adjustable sliding upper hinge
MILLENNIUM – N Series Notched Compatible Hardware

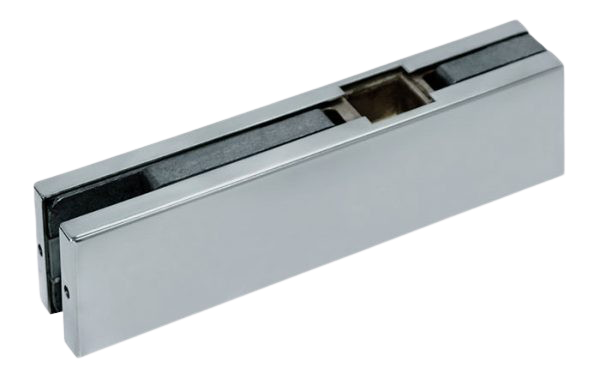

341M
Adjustable lower hinge square 16/19
MILLENNIUM – N Series Notched Compatible Hardware

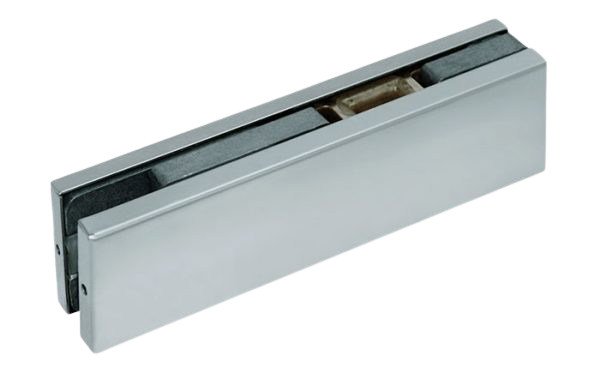

342M
Adjustable sliding lower strip hinge
MILLENNIUM – N Series Notched Compatible Hardware
343M
European adjustable movable low hinge
MILLENNIUM – N Series Notched Compatible Hardware

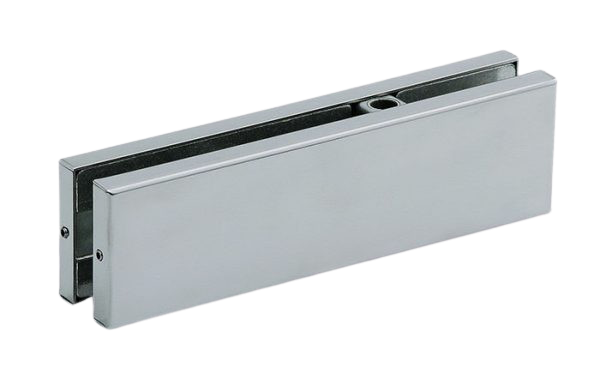

301M
Non-adjustable upper hinge

GENERAL CHARACTERISTICS

  • Glass clamping plates made of aluminium alloy by injection moulding and coated with epoxy paint
  • Depending on the reference, cores are internally adjustable (± 2.5 mm) facilitating installation and clearance adjustment
  • Cam cores manufactured by micro-casting in stainless steel AISI 303, for door closer models R strip, C square 16/19, CI square 13/16, and E European
  • Decorative covers in stainless steel AISI 316
  • Stainless steel A2 screws
  • Glass clamping seals made of PE material
  • No hand needed for assembly
  • Finishes: Polished stainless steel – Satin stainless steel



Recommended door dimensions

  • Glass thickness 10 mm
  • Door dimensions 1200 x 2500 mm
  • Load 80 kg per unit



OPTIONS AVAILABLE ON REQUEST

  • Electrolytic finishes
  • RAL colours

Technical information

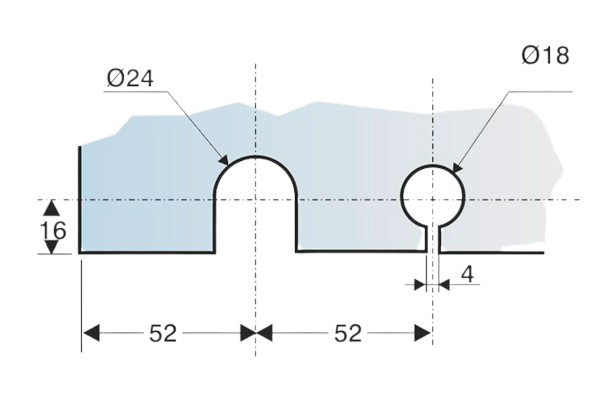

Glass machining
