Products / FITTINGS / N / NV12

N / N V12 – Fittings
101N / 101NV12
Upper hinge
N / N V12 – Fittings

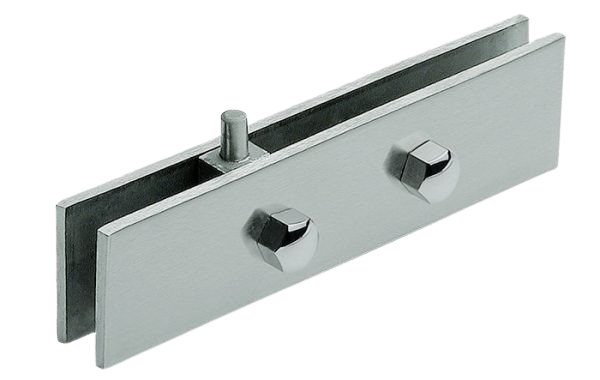

101NR / 101NV12
Reinforced upper hinge
N / N V12 – Fittings

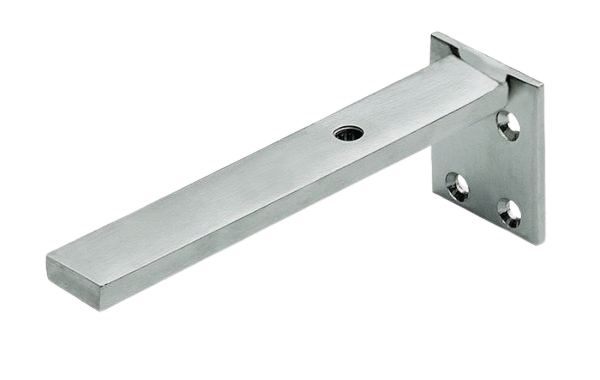

130N
Wall post pivot point
N / N V12 – Fittings

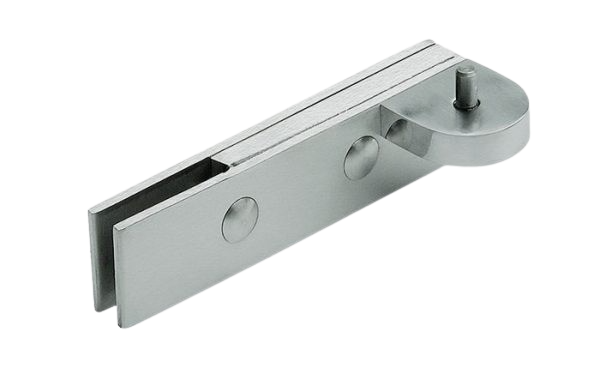

141N
Upper hinge for displaced pivot
N / N V12 – Fittings

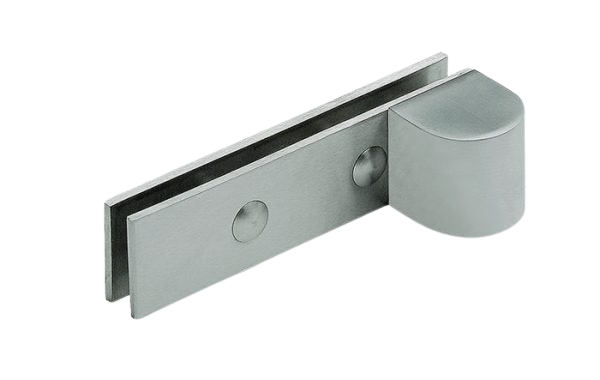

142N
Lower hinge square 16/19 for displaced pivot
N / N V12 – Fittings

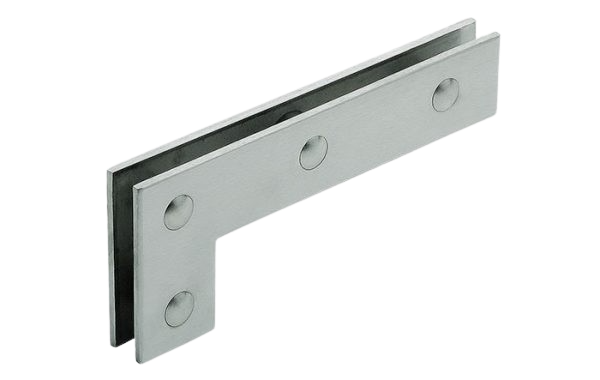

401N / 401NV12
Lateral post pivot point
N / N V12 – Fittings

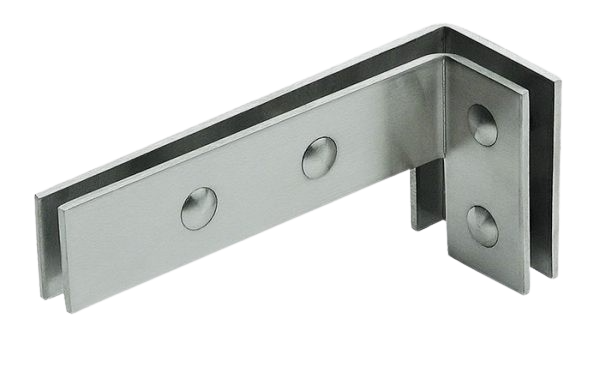

401N90
Lateral pivot point upright angle 90⁰
N / N V12 – Fittings

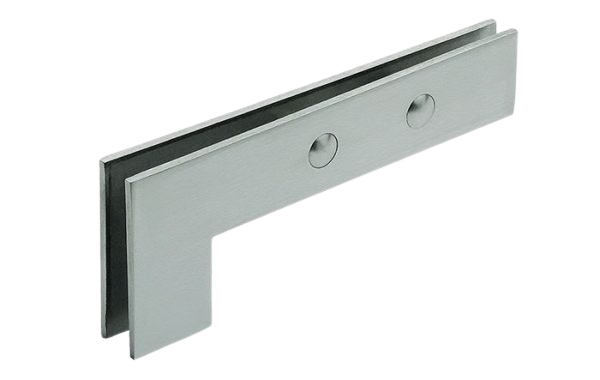

401NC
Lateral post pivot point blind holes
N / N V12 – Fittings

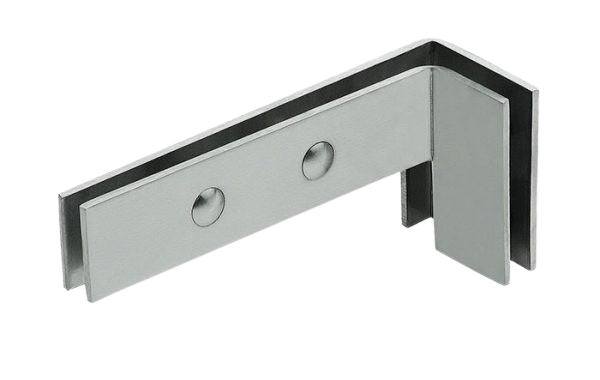

401NC90
Lateral post pivot point blind holes 90º angle
N / N V12 – Fittings

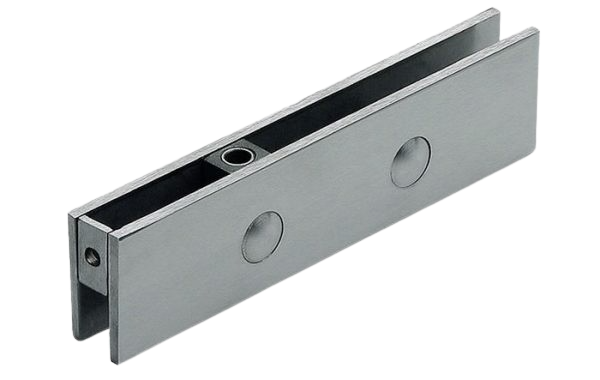

403N / 403NV12
Post pivot point
N / N V12 – Fittings

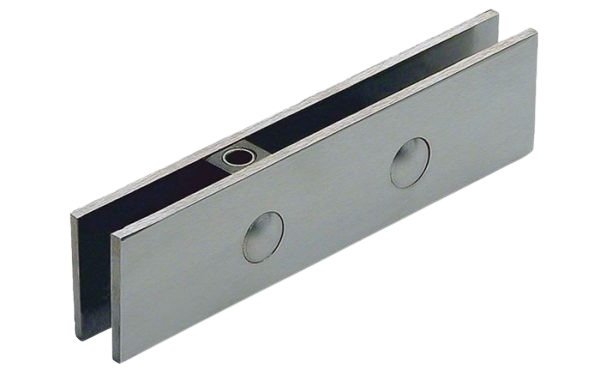

403N/2
Sliding post pivot point
N / N V12 – Fittings

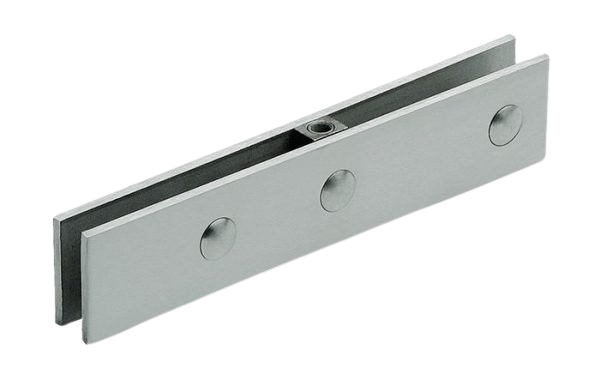

404N
Post pivot point in door battery
N / N V12 – Fittings

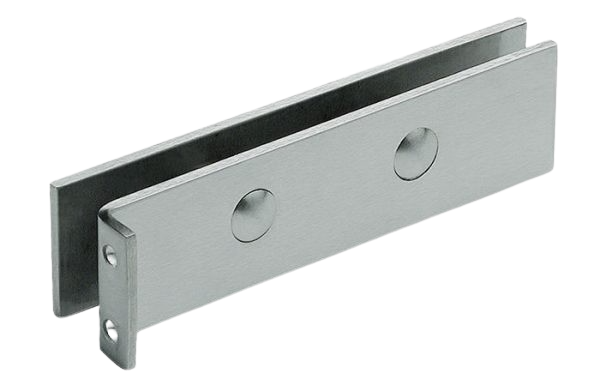

409N / 409NV12
Fin post pivot point
N / N V12 – Fittings

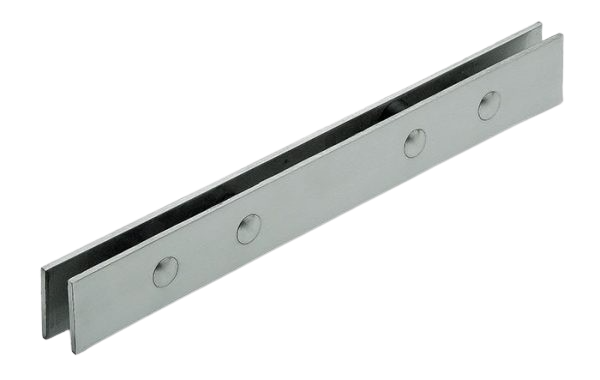

420N / 420NV12
Double post pivot point in door battery
N / N V12 – Fittings

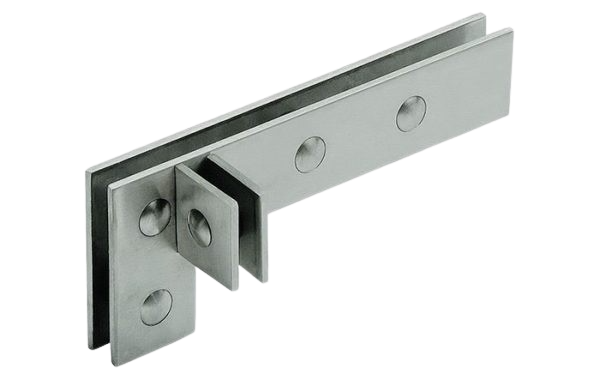

431N
Lateral post pivot point with reinforcement
N / N V12 – Fittings

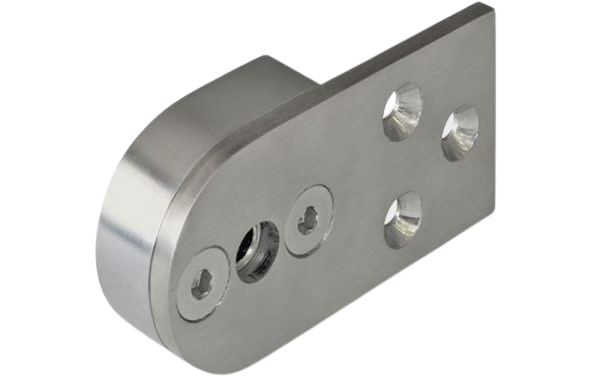

440N
Displaced upper pivot point for 141N
N / N V12 – Fittings

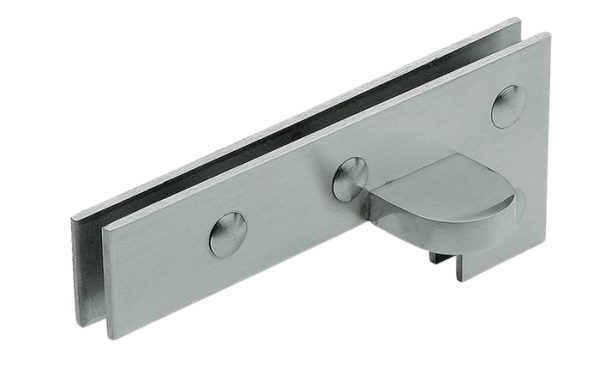

441N
Lateral post pivot displaced pivot for 141N
N / N V12 – Fittings

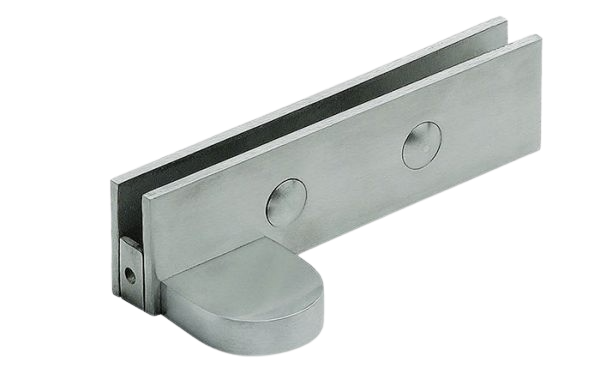

442N
Post pivot displaced pivot 141N
N / N V12 – Fittings

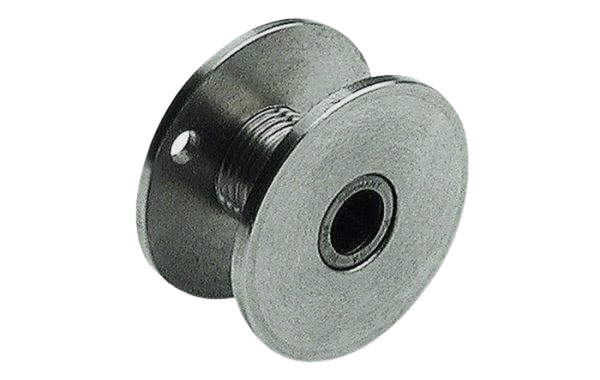

451N
Roof upper pivot
N / N V12 – Fittings

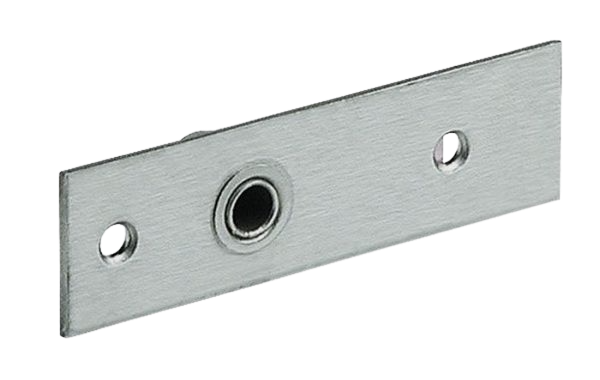

452N
Upper pivot for 101N
N / N V12 – Fittings

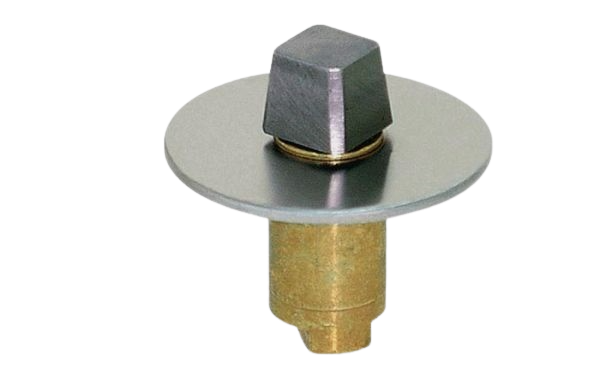

463CI
Square wedge 13/16
N / N V12 – Fittings
463C
Square wedge 16/19
N / N V12 – Fittings

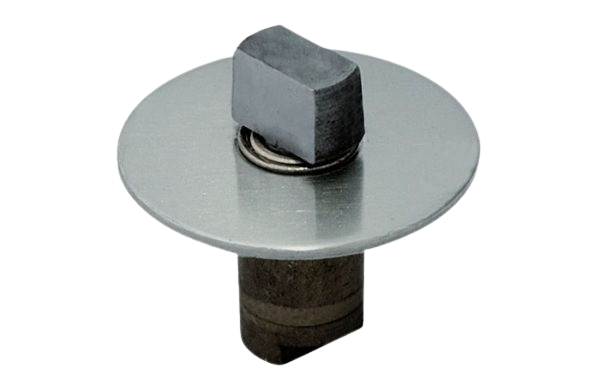

463E
European wedge
N / N V12 – Fittings

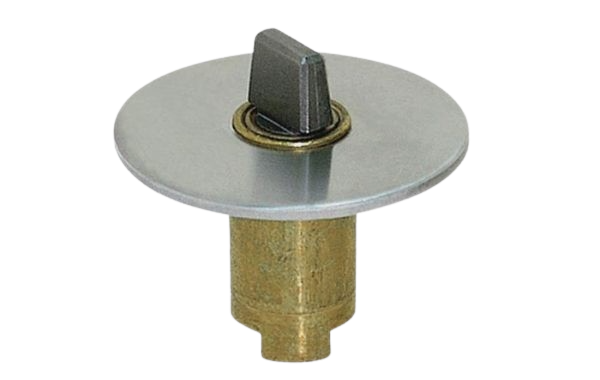

463N
Strip wedge
N / N V12 – Fittings
505N
Double glass union, vertical
N / N V12 – Fittings

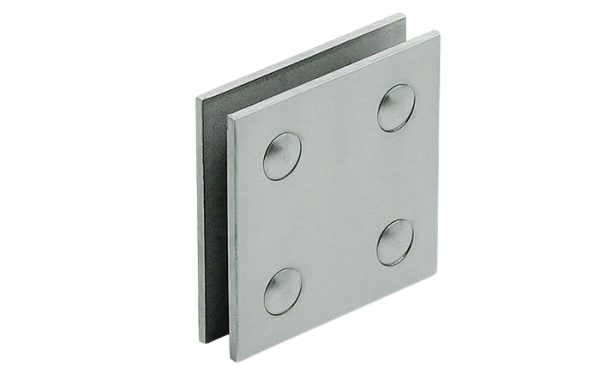

514N / 514NV12
Quadruple glass union
N / N V12 – Fittings

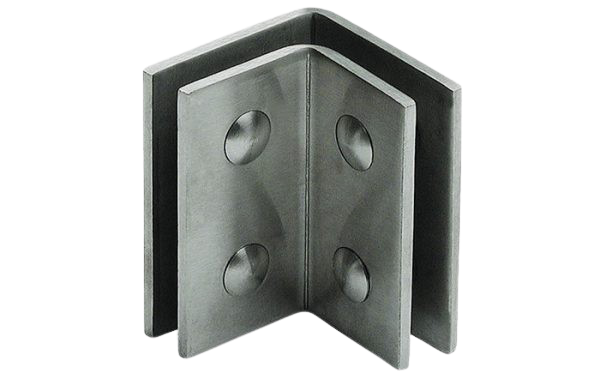

514N90
Quadruple glass union 90º angle
N / N V12 – Fittings
519N / 519NV12
Triple glass union, stop
N / N V12 – Fittings

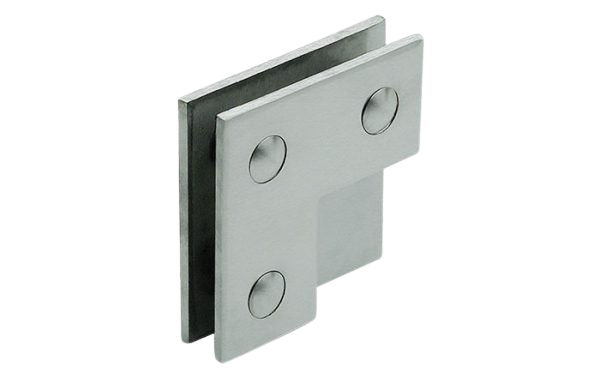

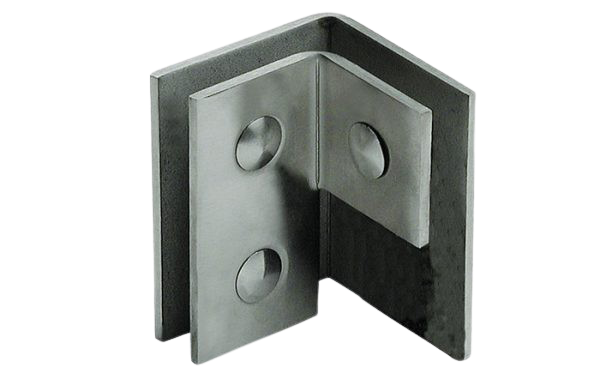

519N90
Triple glass union stop 90º angle
N / N V12 – Fittings

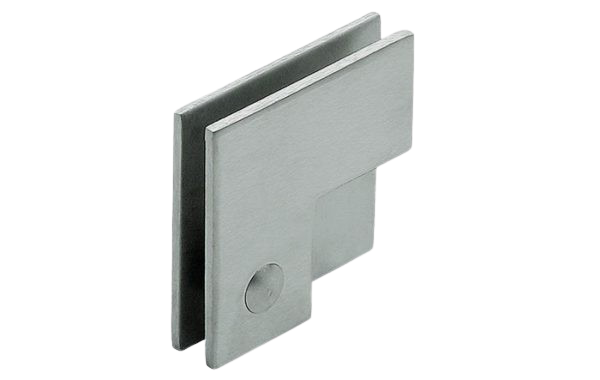

519NC
Triple glass union stop blind holes
N / N V12 – Fittings

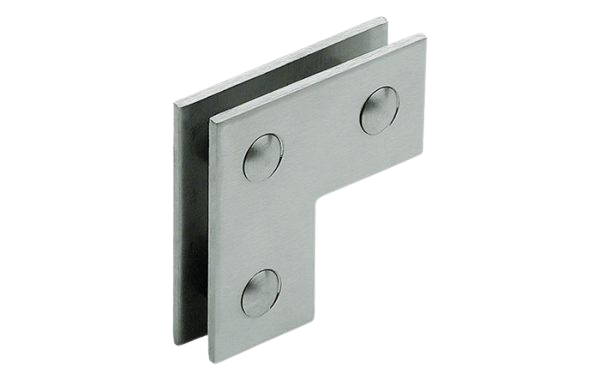

521N
Triple glass union
N / N V12 – Fittings

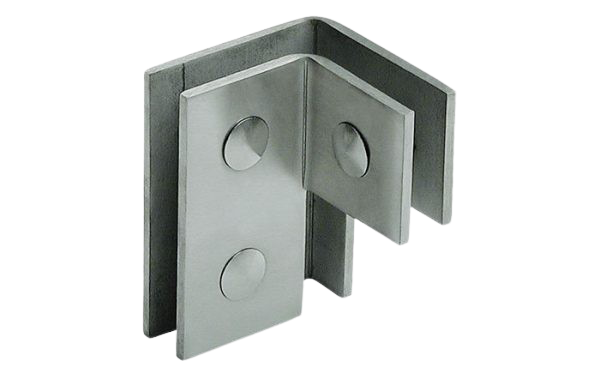

521N90
Triple glass union 90º angle
N / N V12 – Fittings

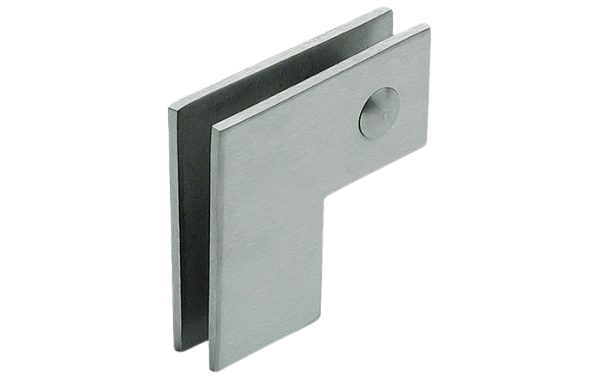

521NC
Triple glass union blind holes
N / N V12 – Fittings

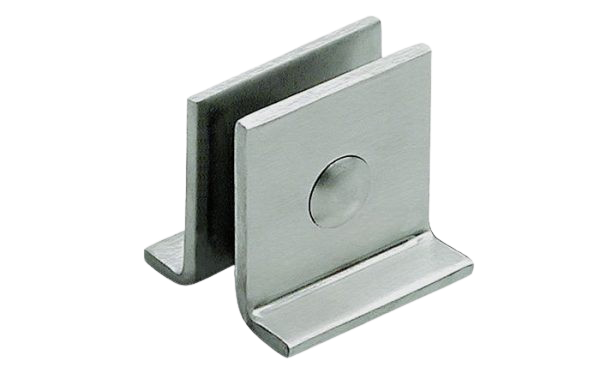

555N / 555NV12
Single glass union
N / N V12 – Fittings

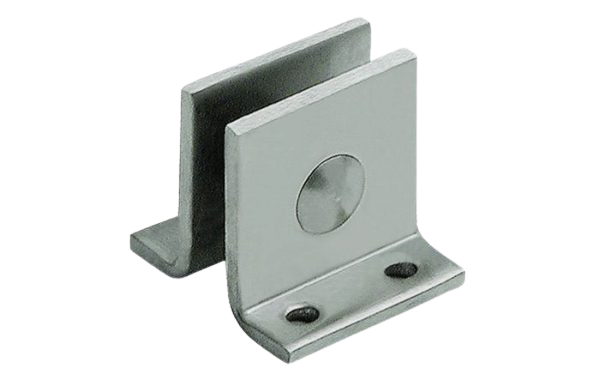

555NE / 555NEV12
Single glass union blind holes anchorage on outer fins
N / N V12 – Fittings

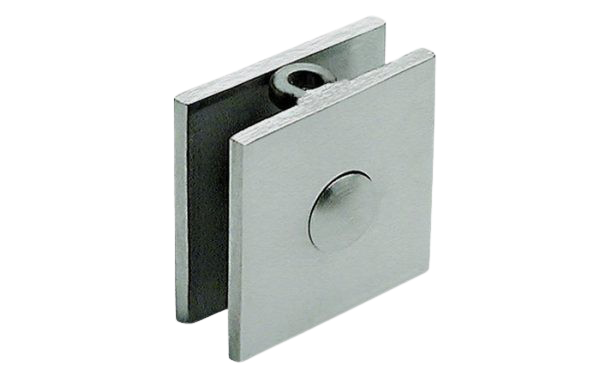

555S / 555SV12
Single glass union floor/ceiling
N / N V12 – Fittings

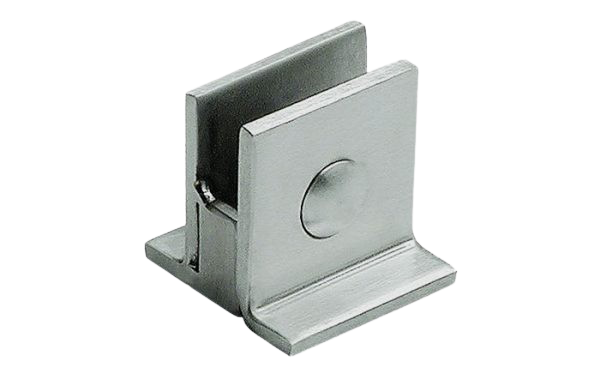

555V
Single glass union vertices
N / N V12 – Fittings

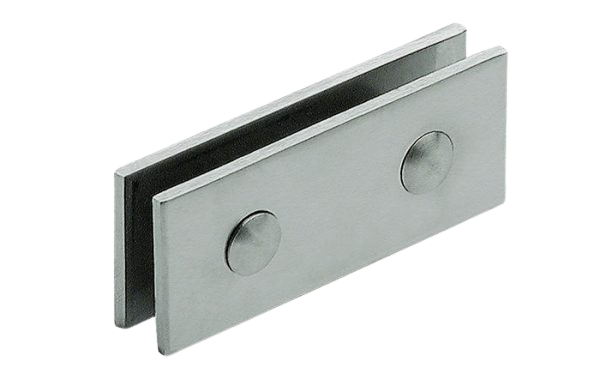

571N
Double glass union
N / N V12 – Fittings

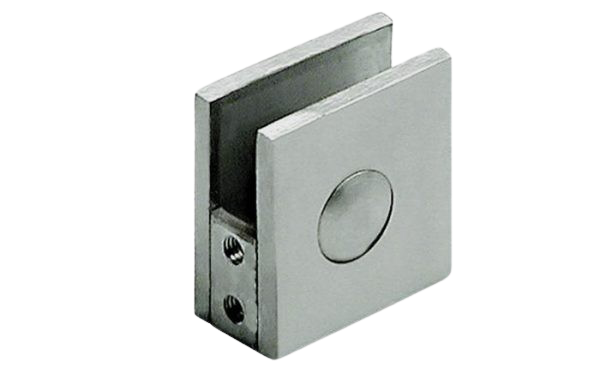

753N
Reinforcement
N / N V12 – Fittings

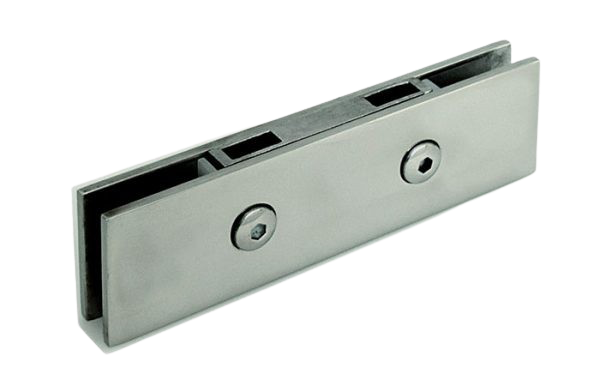

1032 / 1032V12
Double strip lower hinge
N / N V12 – Fittings

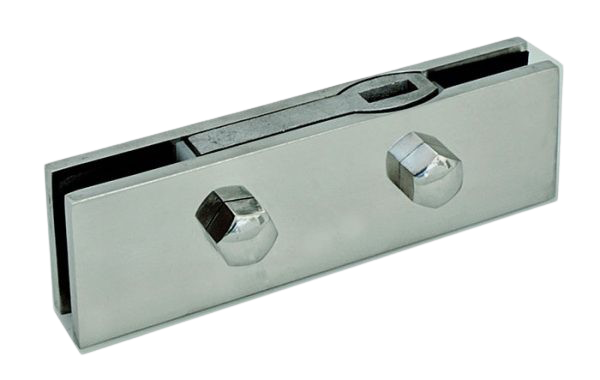

1032R / 1032RV12
Reinforced double strip lower hinge
N / N V12 – Fittings

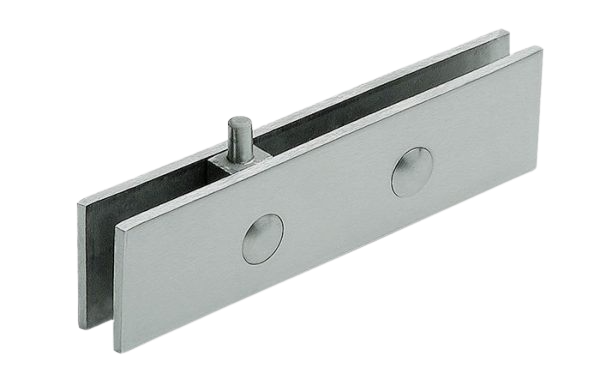

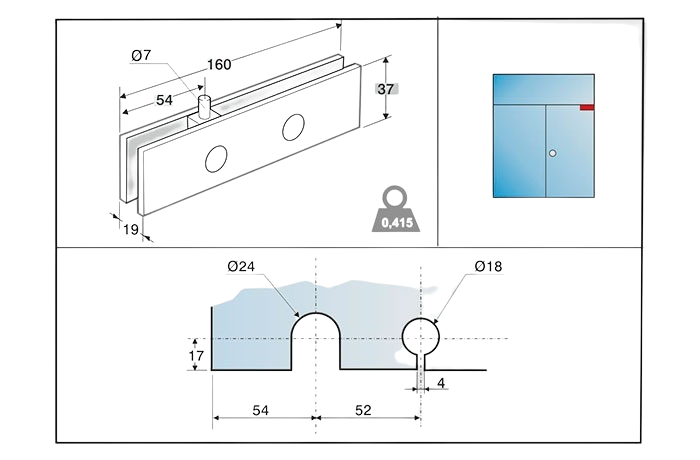

101N / 101NV12
Upper hinge

GENERAL CHARACTERISTICS

  • Glass clamping plates made from 4mm thick stainless-steel sheet AISI 304
  • Internal cores manufactured by micro-casting in stainless steel AISI 303
  • Cam core for door closer model: R strip
  • Allen screws stainless steel A2
  • Hexagonal screws for reinforcements in A2 stainless steel
  • Glass clamping seals made with cork rubber material
  • Finishes: Polished stainless steel – Satin stainless steel



Recommended door dimensions

  • Door size 1100 x 2500 mm

N

  • Glass thickness 10 mm
  • Load 70 kg per unit

N V12

  • Glass thickness 12 mm
  • Load 85 kg per unit



OPTIONS AVAILABLE ON REQUEST

  • Electrolytic finishes
  • RAL colours
  • VG pieces with special angles
  • Special pieces according to needs

Technical information

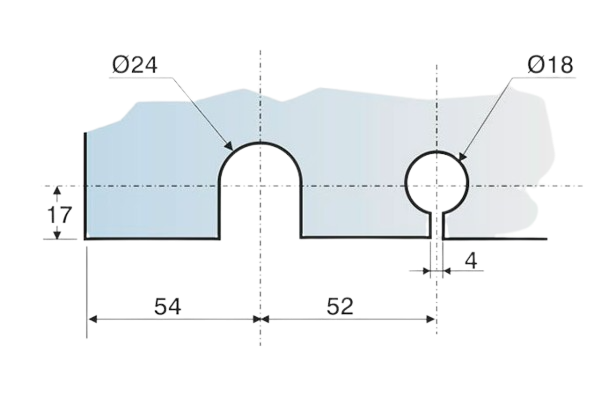

Glass machining
