SERIE 9000 FLAT - Hardware for installations with large doors

Products / FITTINGS / LARGE DIMENSIONS DOOR FITTINGS / SERIE 9000 FLAT

SERIE 9000 FLAT – Hardware for installations with large doors

9000 FLAT

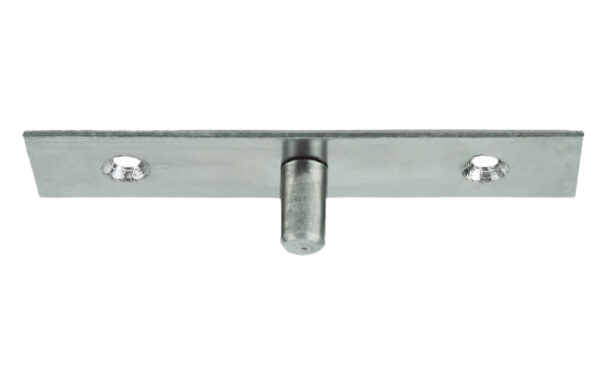

Top pivot

SERIE 9000 FLAT – Hardware for installations with large doors

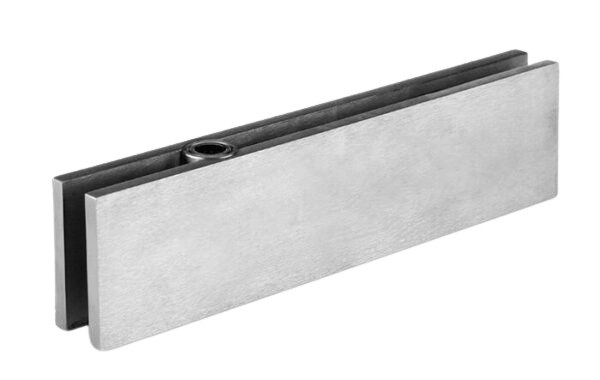

9001 FLAT

High hinge for glass thickness:
10 - 11
12 - 13.52
15- 17.52
20 – 21.52

SERIE 9000 FLAT – Hardware for installations with large doors

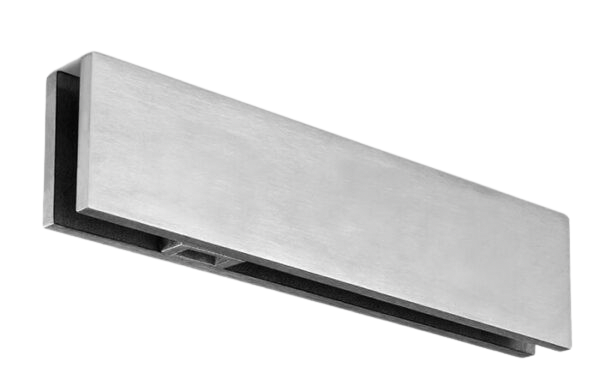

9002 FLAT

Low hinge reglet for glass thickness:
10 – 11
12 - 13.52
15 – 17.52
20 – 21.52

SERIE 9000 FLAT – Hardware for installations with large doors

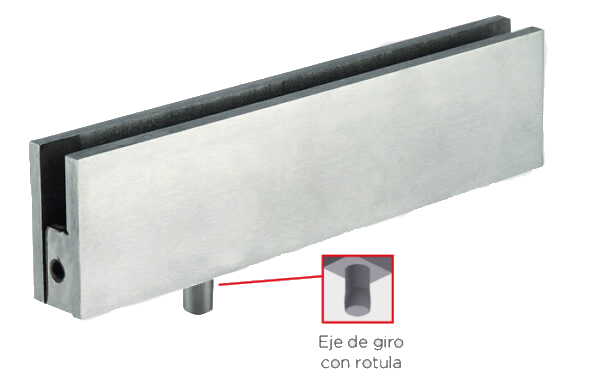

9003 FLAT

Mounting pivot point for glass thickness:
10 – 11
12 - 13.52
15 – 17.52
20 – 21.52

SERIE 9000 FLAT – Hardware for installations with large doors

9004 FLAT

Lateral mounting pivot point for glass thickness:
10 – 11
12 - 13.52
15 – 17.52
20 – 21.52

SERIE 9000 FLAT – Hardware for installations with large doors

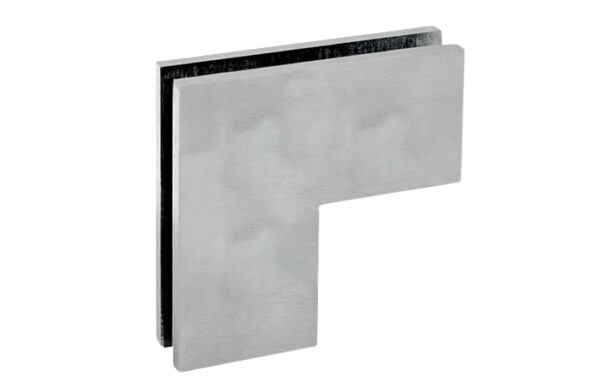

9005 FLAT

Three-glass union for glass thickness:
10 – 11
12 - 13.52
15 – 17.52
20 – 21.52

SERIE 9000 FLAT – Hardware for installations with large doors

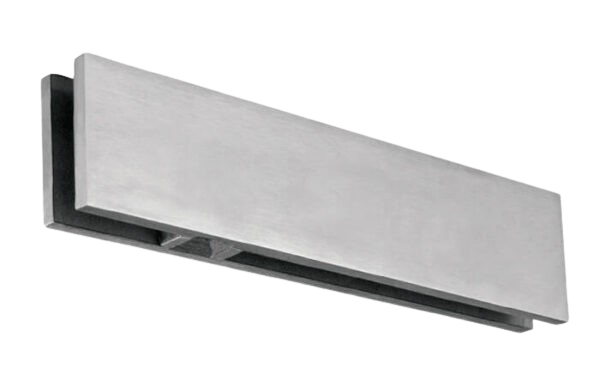

9006 FLAT

Low square 16/19 for glass thickness:
10 – 11
12 - 13.52
15- 17.52
20 – 21.52

SERIE 9000 FLAT – Hardware for installations with large doors

9007 FLAT

Single glass union with interior anchorage for glass thickness: 10 – 11
12 - 13.52
15 – 17.52
20 – 21.52

SERIE 9000 FLAT – Hardware for installations with large doors

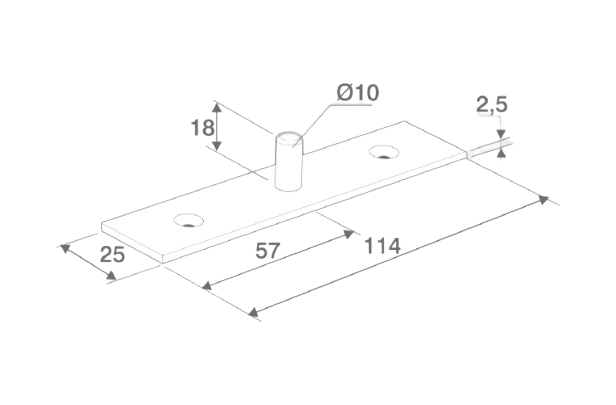

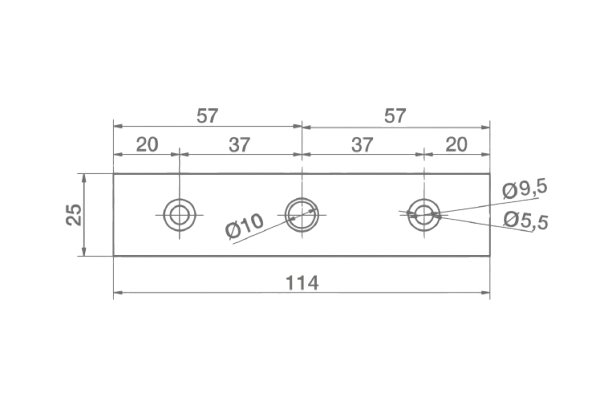

9000 FLAT

Top pivot

// GENERAL CHARACTERISTICS

Series designed for installations with large-sized doors and thick glass
Fittings with no visible screws on the outside, providing a more elegant look
Clamping screws are inside the installation, hidden from view
Glass clamping plates made from 8mm thick stainless-steel sheet AISI 304
Allen screws in stainless steel A2
Internal cores made by micro fusion in stainless steel AISI 303
High hinge with needle bearing rotation core
Ø10 mm pivot shafts

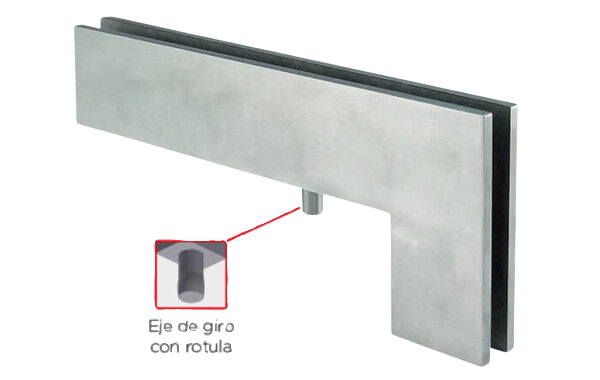

Pivot shaft with ball joint, tolerates 2° deviations in all directions
Cam core for door closer models R reglet and C square 16/19 in AISI 304
Finishes: Polished stainless steel – Satin stainless steel

Recommended door dimensions:

Glass thickness from 10 mm to 11 mm
Door size 1300 x 2500 mm
Load 120 kg per unit

Glass thickness from 12 mm to 13.5 mm
Door size 1300 x 2500 mm
Load 120 kg per unit

Glass thickness from 15 mm to 17.52 mm
Door size 1200 x 2500 mm
Load 140 kg per unit

Glass thickness from 20 mm to 21.52 mm
Door size 1100 x 2500 mm
Load 150 kg per unit

OPTIONS AVAILABLE ON REQUEST

Electrolytic finishes
RAL colours
Special pieces according to needs

Technical sheets

Technical information

Glass machining
