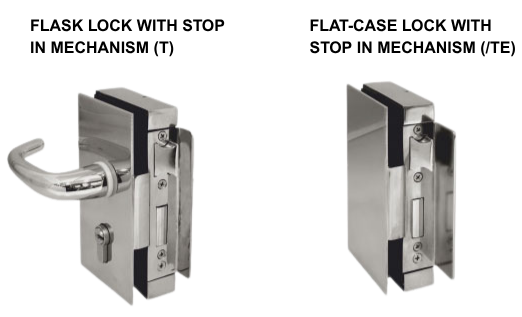

TER – Mortise lock WITHOUT notch
1023
Latch/lever bolt and handle in mechanism
TER – Mortise lock WITHOUT notch
1024
Latch/lever bolt and knob 003R in mechanism
TER – Mortise lock WITHOUT notch
1027
Latch/lever bolt half-cylinder in mechanism
TER – Mortise lock WITHOUT notch
1028
Latch/lever bolt half-cylinder and handle in mechanism
TER – Mortise lock WITHOUT notch
1029
Latch/lever bolt half-cylinder and knob 003R in mechanism
TER – Mortise lock WITHOUT notch
1031
Latch/lever bolt half-cylinder and fixed knob 002R in mechanism
TER – Mortise lock WITHOUT notch
1033
Latch and handle in mechanism
TER – Mortise lock WITHOUT notch
1034
Latch and knob 003R in mechanism
TER – Mortise lock WITHOUT notch
1035
Lever half-cylinder in mechanism
TER – Mortise lock WITHOUT notch
1036
Latch half-cylinder in mechanism
TER – Mortise lock WITHOUT notch
1045
Retractable hook cylinder
TER – Mortise lock WITHOUT notch
1046
Swing lever half-cylinder
TER – Mortise lock WITHOUT notch
1124
Latch/lever bolt and knob 016R in mechanism
TER – Mortise lock WITHOUT notch
1129
Latch/lever bolt half-cylinder and knob 016R in mechanism
TER – Mortise lock WITHOUT notch
1131
Latch/lever bolt half-cylinder and fixed knob 015R in mechanism
TER – Mortise lock WITHOUT notch
1134
Latch and knob 016R in mechanism
TER – Mortise lock WITHOUT notch
1023
Latch/lever bolt and handle in mechanism

GENERAL CHARACTERISTICS

  • Pressure-fit installation (gluing to glass is recommended)
  • Handles made of stainless steel AISI 316
  • Stainless steel A2 screws
  • Decorative caps made of stainless steel AISI 316
  • Euro profile multipoint security cylinder
  • Glass clamping seals made of cork-rubber material
  • Reversible latch operated by key, latch throw 10 mm
  • Lever with two key turns and anti-cut treatment, lever throw 20 mm
  • Cylinder entry 40 mm
  • Certified according to standard UNE-EN 1935:2002/AC:2004, Grade 7 / 200,000 cycles
  • Certified according to standard UNE-EN 1670:2007/AC:2008, Grade 5, maximum corrosion resistance



Standard manufacturing

  • Finishes: Bright stainless steel – Satin stainless steel
  • Glass thickness 10 mm



OPTIONS AVAILABLE ON REQUEST

  • Electrolytic finishes
  • RAL colours
  • (/T) Stop on mechanism for locks with outward opening for installation with lock keeper WITHOUT electric door opener
  • (/TE) Stop on mechanism for locks with outward opening for installation WITH electric door opener lock keeper (recommended to prevent sabotage)
  • (/SCU) Stop on bracket for locks with outward opening (recommended to prevent sabotage)
  • Desired stop can be ordered by adding (/T), (/TE), or (/SCU) after the lock reference number
  • Glass thicknesses up to 17.52 mm

Additional Information

  • Locks designed for EXTERIOR opening that are installed with electric latch keepers (“trunk”) must have a stop.
  • Locks installed with electric latch keepers can only open in the direction of the mechanism’s location.
  • Latch keepers with stops are only for latch locks with INTERIOR
  • Latch keepers are always positioned in the same orientation as the latch locks in all cases.

Technical information
